Helix Accessories & Sensors

HELIX ACCESSORIES & SENSORS

HELIX ACCESSORIES

PRODUCT OVERVIEW

Available Today!

RE657 – HeliTouch™

Features:
• Encrypted, Helix-enabled, battery-backed Wi-Fi™ connection
• Full status reporting
• Vibrant 7” Android tablet display
• Clean and modern appearance
• Mounts over holes left by previous panels or on table top
• Ergonomic angle for comfortable use.
• 8.75 x 4.75 x 3.37 inches
• AC Adapter Part Number: RE012-13

PRODUCT OVERVIEW

Compatible with: Helix Panel

Features:
• Bluetooth Smart RF connection
• Full status reporting
• E-ink display
• Innovative capacitive touch interface
• Clean and modern appearance.
• 1 year of battery life using user replaceable AAA



Description:

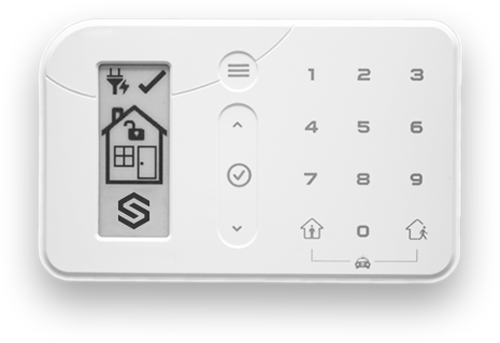

The Helipad is a fully wireless, full status security keypad delivering several firsts to the security industry. The Helipad is the first touch pad to use a supervised Bluetooth Smart connection to provide two-way wireless communication with an alarm panel. It is also the first touchpad to use e-ink technology (similar to what is used in the Amazon Kindle) to provide real-time status updates. This low power, high contrast display ensures easy reading in high and low light conditions. The keypad itself uses capacitive touch delivering a sleek, clean finish for the customer. Helipad has an expected battery life of 1 year on two AAA Alkaline batteries that can be easily replaced by the customer.

PRODUCT OVERVIEW

Compatible with:
• Helix Platform
• Communicates over the Cryptix link

Features:

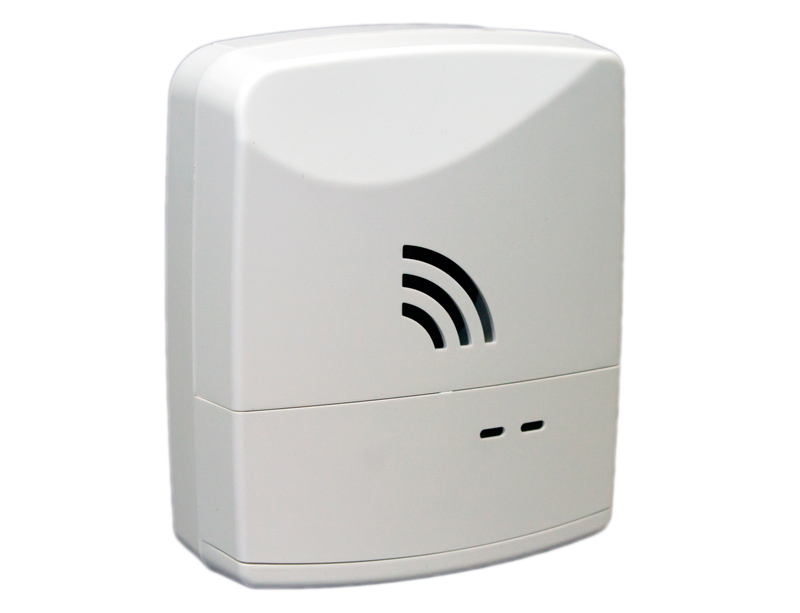

• Remote Wireless Siren
• Siren cadence synchronized to panel
• Automatically follows panel beep volume
• Wall-powered, with backup power on CR123A battery
• Helix supports up to 8 Sirens
• Cover tamper
• Unparalleled wireless range
• Low Battery indication
• 3x4x1.25 inches

PRODUCT OVERVIEW

Compatible with (and our part number for it):
• GE (RE152)
• HONEYWELL (RE252)
• 2GIG (RE252T)
• DSC (RE352)

Features:
• Secure, 4-digit Code to disarm
• 1-button arming
• Red/Green LED arming feedback
• Small, yet comfortable keypad
• Mounts on wall via VHB® tape, or screws
• Secure for carrying in purse or mounting on car visor
• Strong, reliable RF signal.
• 4-6 year battery life on CR2032 battery.

PRODUCT OVERVIEW

• Tactile button click and LED blink for feedback.
• Recessed buttons for no “pocket false alarms”.
• Full pivoting built-in key ring tangle-free storage.
• Strong, reliable RF signal.
• 4-6 year battery life, on A27 battery.
• 2.5 x 1.3 x 0.55 inches.

SENSORS

Intrusion Sensors

PRODUCT OVERVIEW

RE101, RE201, RE201T, RE301

Compatible with (and our part number for it):
• GE (RE101)
• HONEYWELL (RE201)
• 2GIG (RE201T – with a NEW price! Ask your Distributor)
• DSC (RE301)

Features:
• For sensing things that open or separate.
• Magnet and Internal reed switch operation.
• 2 supplemental hardwire zones.
• GE-compatible version reports 2nd zone to 2nd ID.
• Cover tamper.
• Strong, reliable RF signal.
• 10-15 year battery life on CR123A battery.
• Low Battery indication.

PRODUCT OVERVIEW

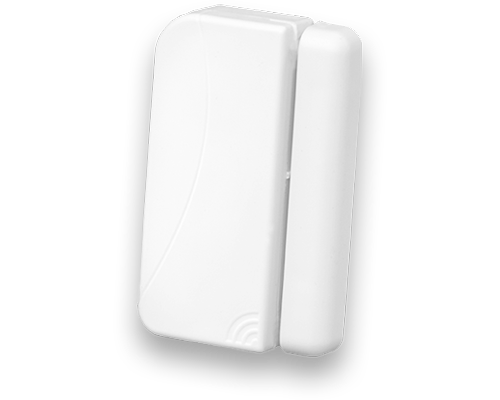

RE122, RE222, RE222T, RE322

Compatible with (and our part number for it):
• GE (RE122)
• HONEYWELL (RE222)
• 2GIG (RE222T – with a NEW price! Ask your Distributor)
• DSC (RE322)

Features:
• Transmits power at the full FCC limits, maximizing range
• Support for an external contact
• 1-inch magnet gap
• cover tamper
• 6+ year battery life

PRODUCT OVERVIEW

RE106, RE206, RE306

Compatible with (and our part number for it):
• GE (RE106)
• HONEYWELL (RE206)
• 2GIG (RE206)
• DSC (RE306)

Features:
• Triggers at approx. 30 degrees tilt.
• Monitors any lifting or tilting door, or equipment movement.
• Mount vertically in non-alarm position.
• Strong, reliable RF signal.
• 10-15 year battery life on CR123A battery.
• Low Battery indication
• 3.3×1.4×1.1 inches.

PRODUCT OVERVIEW

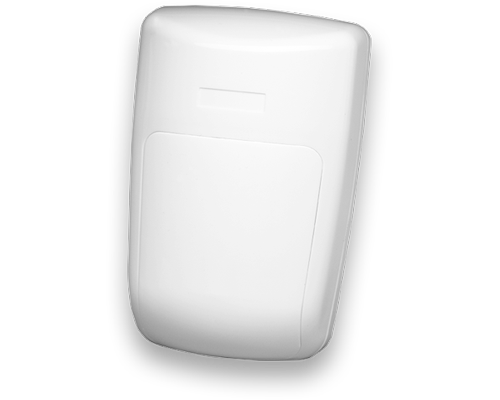

RE110P, RE210P, RE210T, RE310P

Compatible with (and our part number for it):
• GE (RE110P)
• HONEYWELL (RE210P)
• 2GIG (RE210T – with a NEW price! Ask your Distributor)
• DSC (RE310P)

Features:
• PYROFLEX™ IR sensor and HighBar™ signal processing for superior performance.
• 2 (two) 60 pound Pet Immunity; up to 85 pounds.
• 44 foot range and 90 degree field of view (45 degrees to each side).
• Mountable on Flat-wall, 45 degree corner, or swivel/gimbal (sold separately).
• Walk test LED.
• ***Unique external contact on separate wireless ID***
• 6-8 year battery life on 1-CR123 Lithium battery.
• Cover tamper.
• Low Battery indication.
• Strong, reliable RF signal.
• 2.5 x 4.5 x 2 inches.

PRODUCT OVERVIEW

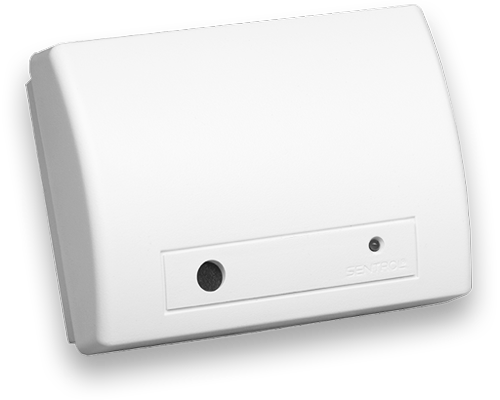

RE109, RE209, RE309

Features:
• Reliably identifies the sound of breaking glass when mounted from 4-25 feet from the source.
• Delivers 4-6 year battery life
• Support of an external contact that reports as a unique zone
• A cost effective way to extend large area coverage of a home or business.

Outdoor Motion Sensor

RE153, RE253, RE253T, RE353

Features:
• Wireless
• Two IR sensors for advanced animal immunity
• 5m or 2m range and a 190-degree field of view (95-degrees to each side)
• Wall mounted
• Walk test LED
• Battery operated (CR123A battery)
• 2-5 year battery life
• Cover tamper
• Low battery indication
• Strong, reliable RF signal
• 2.5 x 7 x 2 inches

Download Data Sheet

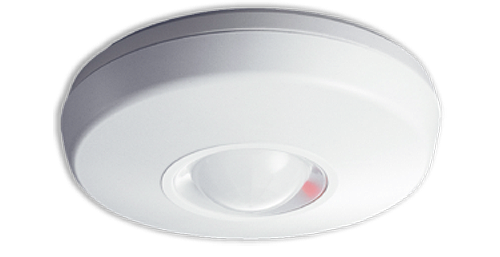

360 Motion Sensor

Features:
• Wireless
• For sensing motion indoors
• 25-40ft detection diameter depending on mounting height (8-12ft)
• Cover tamper
• Strong, reliable RF signal
• 3-7 year battery life

Panics

PRODUCT OVERVIEW

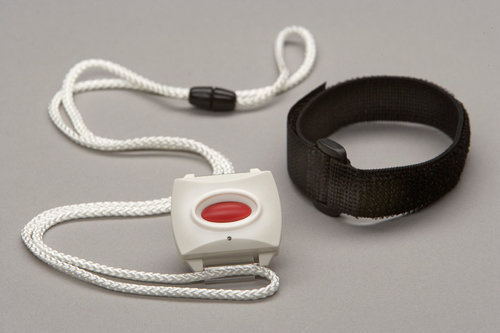

RE103, RE203, RE203

Compatible with (and our part number for it):
• GE (RE103)
• HONEYWELL (RE203)
• 2GIG (RE203)

Features:
• Portable device for emergency initiation of system.
• Single, red button with comfortable feel.
• Fully sealed, water resistant housing.
• Strong, reliable RF signal.
• “Heartbeat” LED blinks every minute to assure user.
• Comes with comfortable, elastic band AND neck pendant.
• 4-6 year battery life

Environmental

PRODUCT OVERVIEW

RE105, RE205, RE205, RE305

Compatible with (and our part number for it):
• GE (RE105)
• HONEYWELL (RE205)
• 2GIG (RE205)
• DSC (RE305)

Features:
• Can be used as just Freeze, Freeze + Overheat, or just Overheat.
• Freeze Warning = under 40 degrees F.
• Overheat Warning = over 100 degrees F.
• Custom Temperatures available based on volume, such as Freezer Failure.
• GE version gives 2 IDs, Honeywell version gives 2 loops.
• First ID or Loop alarm indicates “freeze” Temperature less than 40 degrees F.
• Second ID or Loop alarm indicates “overheat” greater than 100 degrees F.
• 8-10 year battery life on CR123A battery.
• Low Battery indication. · 3.3×1.4×1.1 inches.

PRODUCT OVERVIEW

RE119, RE219, RE319

Compatible with (and our part number for it):
• GE (RE119)
• HONEYWELL (RE219)
• 2GIG (RE219)
• DSC (RE319)

Features:

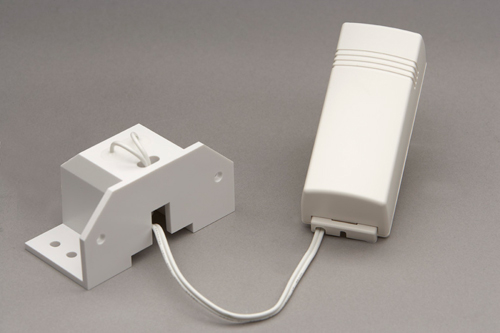

• Tri-Mode Environmental Sensing:
   - Flood/Moisture Sensor
   - Freeze – for Furnace Failure
   - Overheat – for Furnace runaway or Air Conditioning failure.
• 3 unique wireless IDs or Loops: one for each function
• Cover tamper.
• Strong, reliable RF signal.
• 8-10 year battery life on CR123A battery.
• Low Battery indication.
• 3.3×1.4×1.1 inches.

Life Safety

PRODUCT OVERVIEW

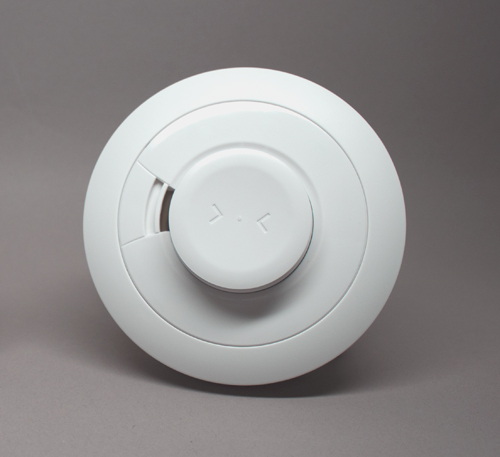

RE114, RE214, RE214T, RE314

Compatible with (and our part number for it):
• GE (RE114)
• HONEYWELL (RE214)
• 2GIG (RE214T)
• DSC (RE314)

Features: The REX14 Smoke Detector is a highly reliable smoke detector with a photoelectric detection element and built-in temporal 3 sounder. Long range transmitter and a detection element that is UL217 certified.

PRODUCT OVERVIEW

RE113, RE213, RE213T, RE313 – CO Sensors

Features: The REx13 is a carbon monoxide detector delivering 70-400ppm detection meeting UL2034 specifications. With 3-5 year battery-life, a long range sensor and built- in temporal 4 sounder, the REx13 provides maximum performance for your customers.
